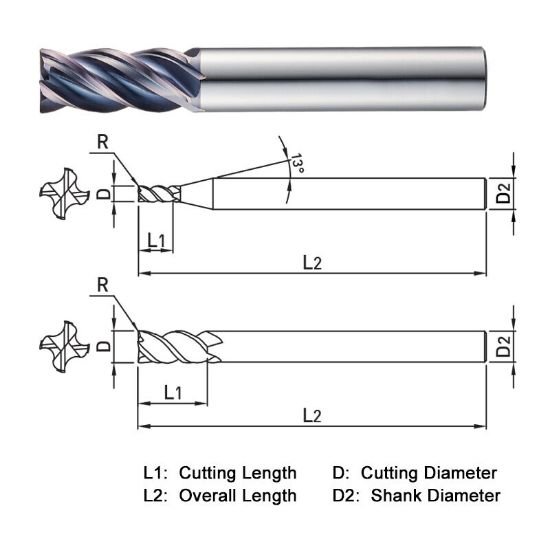

Picture of Widin XR504160 Dia 16mm SH 0.6299 LOC 1.2598 OAL 3.5433 End Mill Variable Helix Carbide AlTiN Single End Corner Radius0.0118 0.30mm X-Star

Widin XR504160 Dia 16mm SH 0.6299 LOC 1.2598 OAL 3.5433 End Mill Variable Helix Carbide AlTiN Single End Corner Radius0.0118 0.30mm X-Star

Part Number: WIDXR504160
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$180.14
SKU: 1226214

Description

WIDIN Variable Helix End Mill Carbide AlTiN Corner Radius 0.0118 0.30MM 4 Flute Single End X-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.5433 90.00MM
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 4
Tool Dia 0.6299 16.00MM
Length Of Cut 1.2600 32.00MM
Geometry & Angles
Corner Radius 0.0118 0.30MM
Helix Angle Variable
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
