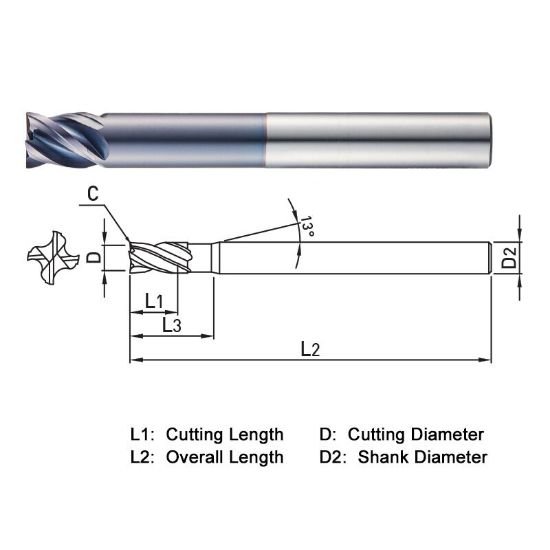

Picture of Widin XE524100 Dia 10mm SH 0.3937 LOC 0.4331 OAL 3.3071 End Mill Variable Helix Carbide AlTiN Single End Square Sharp X-Star

Widin XE524100 Dia 10mm SH 0.3937 LOC 0.4331 OAL 3.3071 End Mill Variable Helix Carbide AlTiN Single End Square Sharp X-Star

Part Number: WIDXE524100
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$79.97
SKU: 1226178

Description

WIDIN Variable Helix End Mill Carbide AlTiN Square Sharp 4 Flute Single End X-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.3071 84.00MM
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 4
Tool Dia 0.3937 10.00MM
Length Of Cut 0.4331 11.00MM
Neck Length 1.6929 43.00MM
Geometry & Angles
Helix Angle Variable
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
