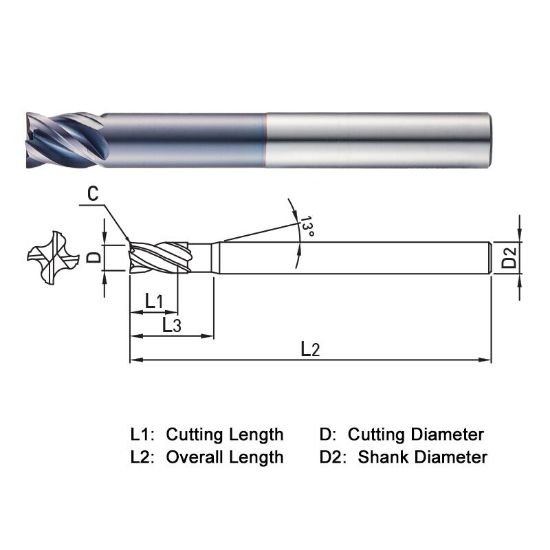

Picture of Widin XE524060 Dia 6mm SH 0.2362 LOC 0.2756 OAL 2.7559 End Mill Variable Helix Carbide AlTiN Single End Square Sharp X-Star

Widin XE524060 Dia 6mm SH 0.2362 LOC 0.2756 OAL 2.7559 End Mill Variable Helix Carbide AlTiN Single End Square Sharp X-Star

Part Number: WIDXE524060
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$45.00
SKU: 1226176

Description

WIDIN Variable Helix End Mill Carbide AlTiN Square Sharp 4 Flute Single End X-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.7560 70.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 4
Tool Dia 0.2362 6.00MM
Length Of Cut 0.2756 7.00MM
Neck Length 1.2992 33.00MM
Geometry & Angles
Helix Angle Variable
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
