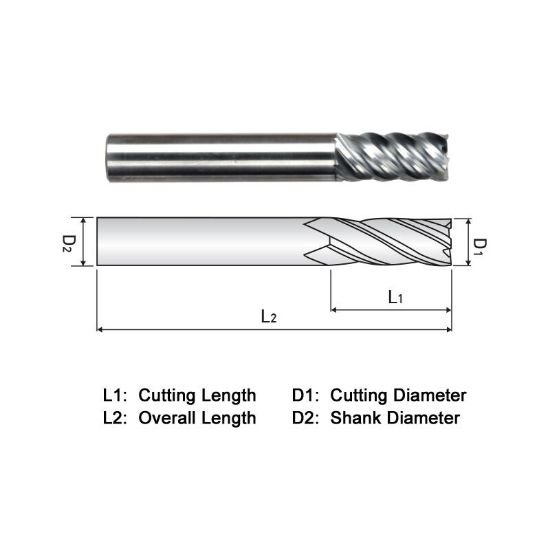

Picture of Widin XE515A022 Dia 11/32 SH 0.3750 LOC 0.8125 OAL 2.50 End Mill Variable Helix Carbide TiAlN Single End Square Sharp X-Star

Widin XE515A022 Dia 11/32 SH 0.3750 LOC 0.8125 OAL 2.50 End Mill Variable Helix Carbide TiAlN Single End Square Sharp X-Star

Part Number: WIDXE515A022
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$42.31
SKU: 1226166

Description

WIDIN Variable Helix End Mill Carbide TiAlN Square Sharp 5 Flute Single End X-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 5
Tool Dia 0.3438 8.73MM - 11/32
Length Of Cut 0.8125 20.64MM
Geometry & Angles
Helix Angle Variable
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
