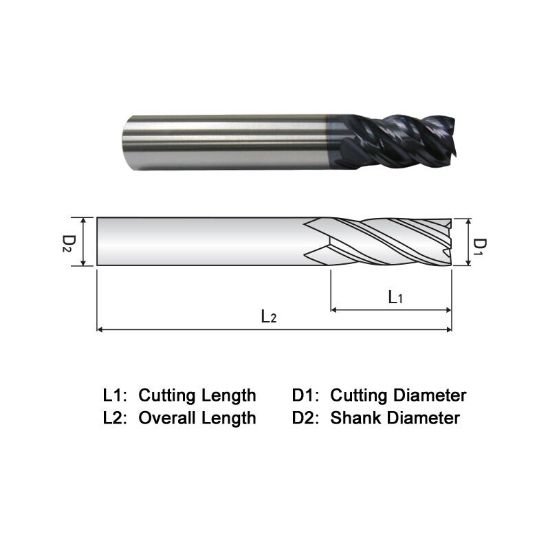

Picture of Widin XE514080 Dia 8mm SH 0.3150 LOC 0.3543 OAL 2.3622 End Mill Variable Helix Carbide AlTiN Single End Square Sharp X-Star

Widin XE514080 Dia 8mm SH 0.3150 LOC 0.3543 OAL 2.3622 End Mill Variable Helix Carbide AlTiN Single End Square Sharp X-Star

Part Number: WIDXE514080
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$40.56
SKU: 1226152

Description

WIDIN Variable Helix End Mill Carbide AlTiN Square Sharp 4 Flute Single End X-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.3622 60.00MM
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 4
Tool Dia 0.3150 8.00MM
Length Of Cut 0.3543 9.00MM
Neck Length 1.0236 26.00MM
Geometry & Angles
Helix Angle Variable
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
