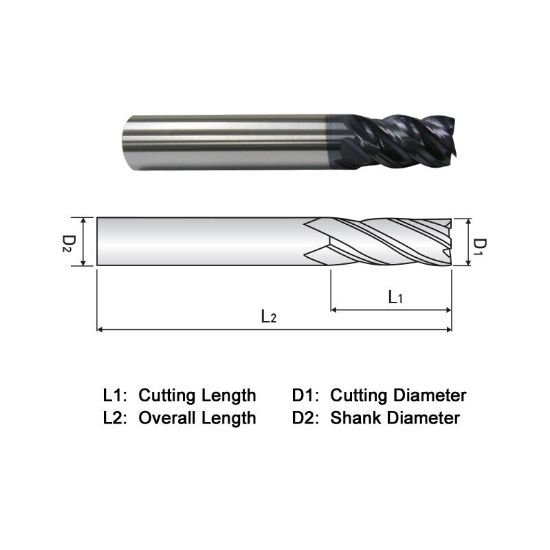

Picture of Widin XE504A033F Dia 1/2 SH 0.50 LOC 1.2500 OAL3.2500 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Square Sharp X-Star

Widin XE504A033F Dia 1/2 SH 0.50 LOC 1.2500 OAL3.2500 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Square Sharp X-Star

Part Number: WIDXE504A033F

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1226121
Vendor: Sussex Tool and Supply
$61.52
WIDIN Variable Helix End Mill Carbide AlTiN Square Sharp Standard Flute Flutes 4 Single End X-STAR Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Coating ALTIN
Mach Side Connection Size 0.5000 12.70MM
Overall Length 3.2500 82.55MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 4
Tool Dia 0.5000 12.70MM - 1/2
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.2500 31.75MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle Variable
Center Cutting Center Cutting
