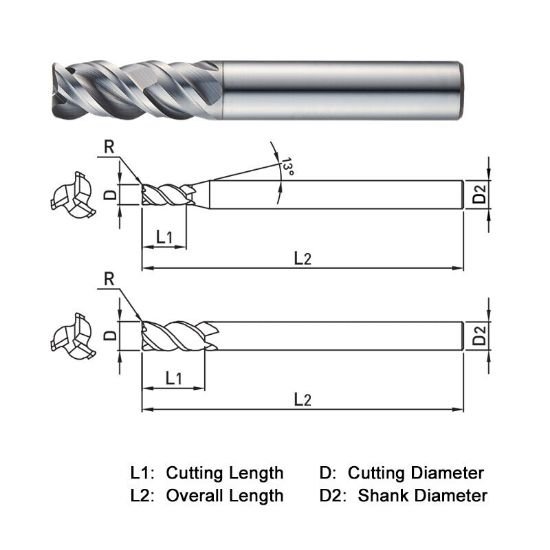

Picture of Widin XCR5031010 Dia 10mm SH 0.3937 LOC 0.9843 OAL 2.7559 End Mill High Helix Carbide TiAlN Single End Corner Radius0.0394 1.00mm X-Star

Widin XCR5031010 Dia 10mm SH 0.3937 LOC 0.9843 OAL 2.7559 End Mill High Helix Carbide TiAlN Single End Corner Radius0.0394 1.00mm X-Star

Part Number: WIDXCR5031010
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$61.34
SKU: 1226060

Description

WIDIN High Helix End Mill Carbide TiAlN Corner Radius 0.0394 1.00MM 3 Flute Single End X-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.7560 70.00MM
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 3
Tool Dia 0.3937 10.00MM
Length Of Cut 0.9843 25.00MM
Geometry & Angles
Corner Radius 0.0394 1.00MM
Helix Angle 48
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
