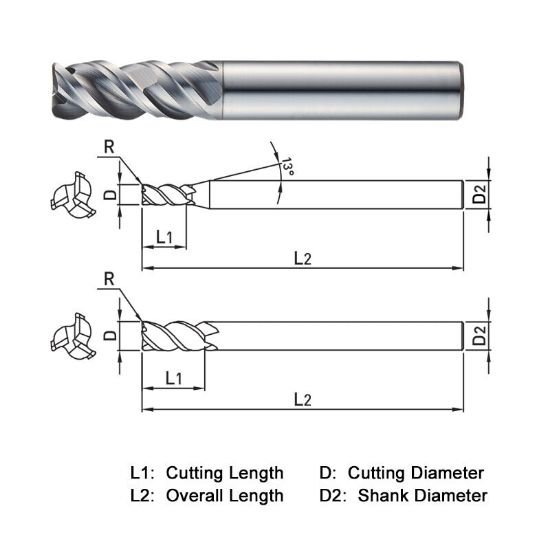

Picture of Widin XCR5030810 Dia 8mm SH 0.3150 LOC 0.7874 OAL 2.3622 End Mill High Helix Carbide TiAlN Single End Corner Radius0.0394 1.00mm X-Star

Widin XCR5030810 Dia 8mm SH 0.3150 LOC 0.7874 OAL 2.3622 End Mill High Helix Carbide TiAlN Single End Corner Radius0.0394 1.00mm X-Star

Part Number: WIDXCR5030810
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$44.71
SKU: 1226058

Description

WIDIN High Helix End Mill Carbide TiAlN Corner Radius 0.0394 1.00MM 3 Flute Single End X-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.3622 60.00MM
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 3
Tool Dia 0.3150 8.00MM
Length Of Cut 0.7874 20.00MM
Geometry & Angles
Corner Radius 0.0394 1.00MM
Helix Angle 48
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
