WIDIN WXR50410010150 DIA 10MM SH 0.3937 LOC 0.8661 OAL 5.9055 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius 0.0394 1.00MM WINNER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWXR50410010150
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Copy Milling, Side Milling, Face Milling, Profile Milling
Package Size 1
Coating AlTiN
Made In USA No
Shipping State Illinois
Performance Rating High Performance

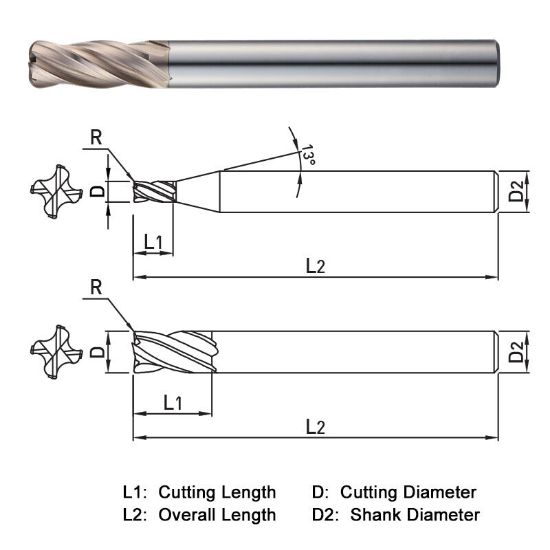

Dimensional Specifications
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Helix Angle Variable
Flutes/Inserts 4
Inch/Metric Metric
Corner Radius 0.0394 1.00MM
Cutter Dia 0.3937 10.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 5.9055 150.00MM
Length Type Standard
Cutter Style Carbide Bull Nose Finisher
Shank/Pilot Dia 0.3937 10.00MM
Length Of Cut 0.8660 22.00MM
Machine Side Connection Size 0.3937 10.00MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
