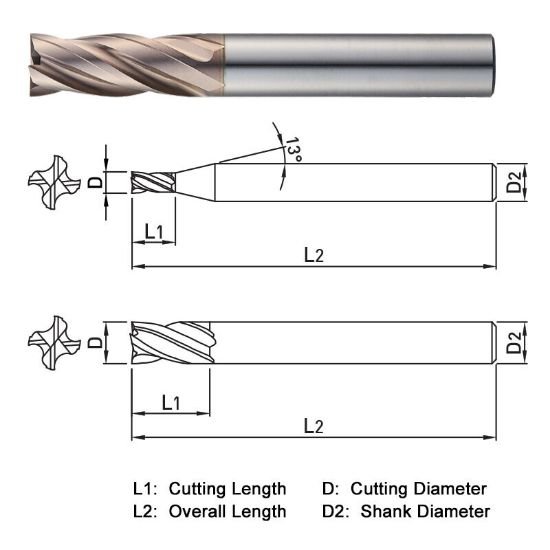

Picture of Widin WXE504A032 Dia 1/2 SH 0.50 LOC 1.00 OAL 3.00 End Mill Variable Helix Carbide AlTiN Single End Square Sharp WINNER

Widin WXE504A032 Dia 1/2 SH 0.50 LOC 1.00 OAL 3.00 End Mill Variable Helix Carbide AlTiN Single End Square Sharp WINNER

Part Number: WIDWXE504A032
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$91.70
SKU: 1225513

Description

WIDIN Variable Helix End Mill Carbide AlTiN Square Sharp 4 Flute Single End WINNER
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Length Of Cut 1.0000 25.40MM
Flutes/Inserts 4
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Tool Dia 0.5000 12.70MM - 1/2
Geometry & Angles
Helix Angle Variable
Performance & Capacity
Performance Rating High Performance
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating ALTIN
Tool Material Carbide
