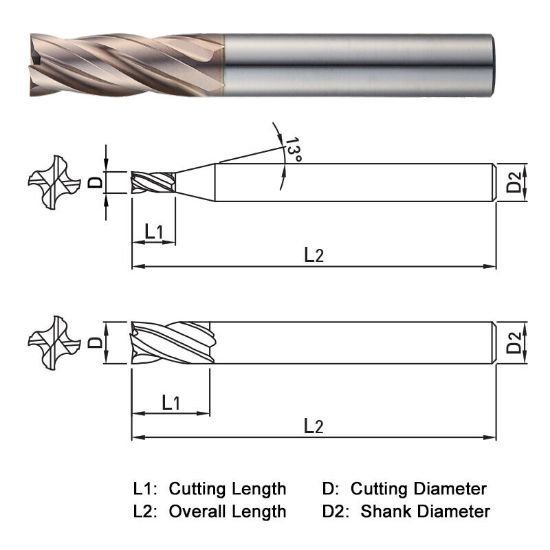

Picture of Widin WXE50410022 Dia 10mm SH 0.3937 LOC 0.8661 OAL 2.5591 End Mill Variable Helix Carbide AlTiN Single End Square Sharp WINNER

Widin WXE50410022 Dia 10mm SH 0.3937 LOC 0.8661 OAL 2.5591 End Mill Variable Helix Carbide AlTiN Single End Square Sharp WINNER

Part Number: WIDWXE50410022
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$52.94
SKU: 1225501

Description

WIDIN Variable Helix End Mill Carbide AlTiN Square Sharp 4 Flute Single End WINNER
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.5591 65.00MM
Length Of Cut 0.8660 22.00MM
Flutes/Inserts 4
Shank/Pilot Dia 0.3937 10.00MM
Tool Dia 0.3937 10.00MM
Geometry & Angles
Helix Angle Variable
Performance & Capacity
Performance Rating High Performance
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating ALTIN
Tool Material Carbide
