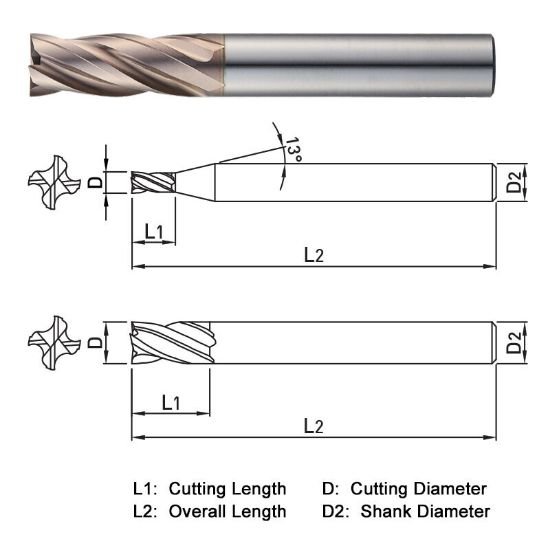

Picture of Widin WXE50408016 Dia 8mm SH 0.3150 LOC 0.6299 OAL 2.3622 End Mill Variable Helix Carbide AlTiN Single End Square Sharp WINNER

Widin WXE50408016 Dia 8mm SH 0.3150 LOC 0.6299 OAL 2.3622 End Mill Variable Helix Carbide AlTiN Single End Square Sharp WINNER

Part Number: WIDWXE50408016
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$40.16
SKU: 1225497

Description

WIDIN Variable Helix End Mill Carbide AlTiN Square Sharp 4 Flute Single End WINNER
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.3622 60.00MM
Length Of Cut 0.6300 16.00MM
Flutes/Inserts 4
Shank/Pilot Dia 0.3150 8.00MM
Tool Dia 0.3150 8.00MM
Geometry & Angles
Helix Angle Variable
Performance & Capacity
Performance Rating High Performance
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating ALTIN
Tool Material Carbide
