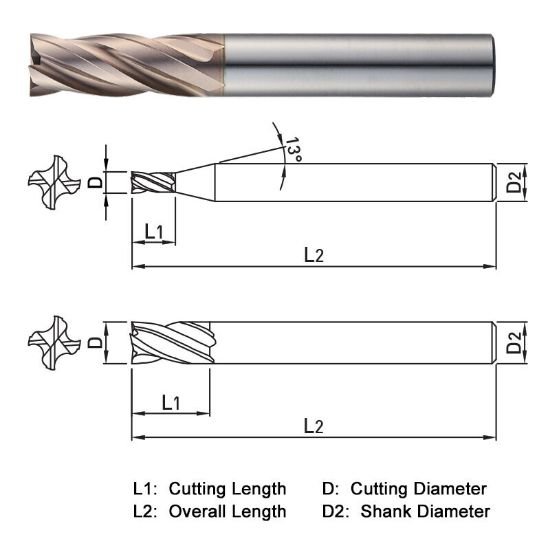

Picture of Widin WXE50401506 Dia 1.50mm SH 0.2362 LOC 0.2362 OAL1.968 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Square Sharp WINNER

Widin WXE50401506 Dia 1.50mm SH 0.2362 LOC 0.2362 OAL1.968 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Square Sharp WINNER

Part Number: WIDWXE50401506

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1225460
Vendor: Sussex Tool and Supply
$23.20
WIDIN Variable Helix End Mill Carbide AlTiN Square Sharp Standard Flute Flutes 4 Single End WINNER Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Coating ALTIN
Mach Side Connection Size 0.2362 6.00MM
Overall Length 1.9685 50.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 4
Tool Dia 0.0591 1.50MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.2362 6.00MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle Variable
Center Cutting Center Cutting
