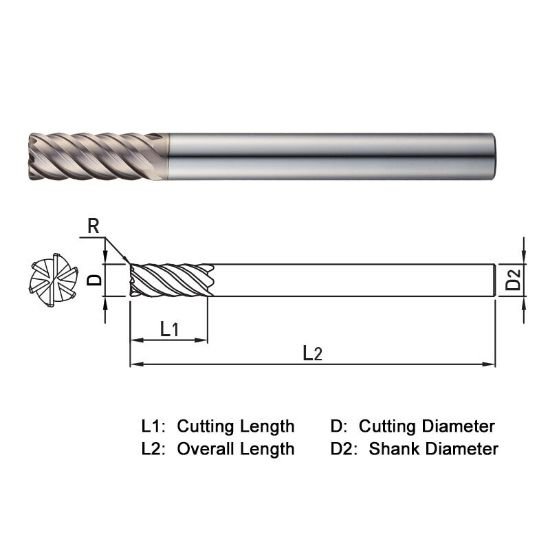

Picture of Widin WR50612003 Dia 12mm SH 0.4724 LOC 1.1811 OAL 4.3307 End Mill High Helix Carbide AlTiN Single End Corner Radius0.0118 0.30mm WINNER

Widin WR50612003 Dia 12mm SH 0.4724 LOC 1.1811 OAL 4.3307 End Mill High Helix Carbide AlTiN Single End Corner Radius0.0118 0.30mm WINNER

Part Number: WIDWR50612003
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$114.81
SKU: 1223621

Description

WIDIN High Helix End Mill Carbide AlTiN Corner Radius 0.0118 0.30MM 6 Flute Single End WINNER
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type LONG
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 4.3307 110.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 6
Tool Dia 0.4724 12.00MM
Length Of Cut 1.1811 30.00MM
Geometry & Angles
Corner Radius 0.0118 0.30MM
Helix Angle 45
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
