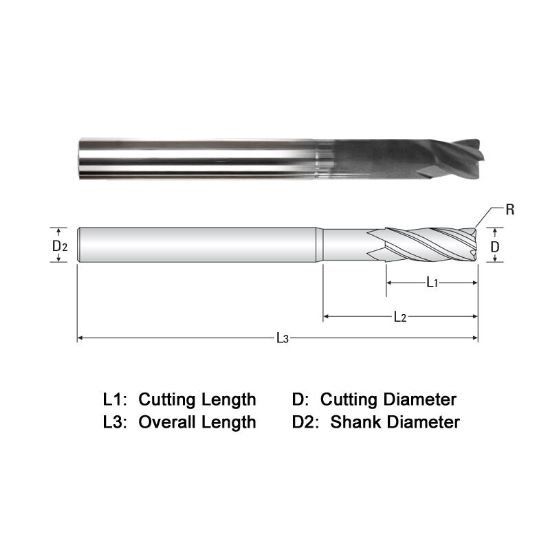

Picture of Widin WGR504A020020 Dia 5/16 SH 0.3125 LOC 0.8750 OAL2.50 End Mill Standard Flute Standard Helix Carbide Diamond Single End Corner Radius0.0200 0.51mm Z-GRA-MATE

Widin WGR504A020020 Dia 5/16 SH 0.3125 LOC 0.8750 OAL2.50 End Mill Standard Flute Standard Helix Carbide Diamond Single End Corner Radius0.0200 0.51mm Z-GRA-MATE

Part Number: WIDWGR504A020020

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1219486
Vendor: Sussex Tool and Supply
$148.77
WIDIN Standard Helix End Mill Carbide Diamond Corner Radius 0.0200 0.51MM Standard Flute Flutes 4 Single End Z-GRA-MATE Carbide By applying diamond coatings to your metal parts you can increase lifetime and minimize maintenance related downtime due to the replacement of high wear parts. In addition, any process parts enhanced by a wear resistant coating like Composite Diamond Coating® will produce more consistent product over an extended period of time. Most metal finishers agree that the presence of this unique coating may also allow new materials with other performance or cost advantages to be utilized.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite
Coating Diamond
Mach Side Connection Size 0.3125 7.94MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Flutes/Inserts 4
Tool Dia 0.3125 7.94MM - 5/16
Length Type LONG
Performance Rating High Performance
Length Of Cut 0.8750 22.23MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0200 0.51MM
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
