WIDIN WGR502050500 DIA 5MM SH 0.2362 LOC 0.1969 OAL 3.5433 End Mill Standard Flute Standard Helix Carbide Diamond Single End Corner Radius 0.0118 0.30MM Z-GRA-MATE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWGR502050500
Delivery date: 3-5 days
$80.39

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

By applying diamond coatings to your metal parts you can increase lifetime and minimize maintenance related downtime due to the replacement of high wear parts. In addition, any process parts enhanced by a wear resistant coating like Composite Diamond Coating® will produce more consistent product over an extended period of time. Most metal finishers agree that the presence of this unique coating may also allow new materials with other performance or cost advantages to be utilized.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Face Milling, Profile Milling, Side Milling, Slot Milling
Made In USA No
Shipping State Illinois
Coating Diamond
Package Size 1
Performance Rating High Performance

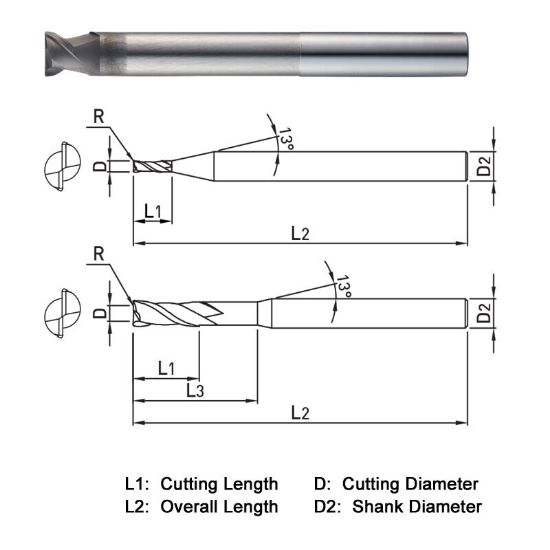

Dimensional Specifications
Cut Rating Graphite
Flutes/Inserts 2
Inch/Metric Metric
Cutter Dia 0.1968 5.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Length Of Cut 0.1969 5.00MM
Machine Side Connection Size 0.2362 6.00MM
Overall Len 3.5433 90.00MM
Single/Double End Single End
Corner Radius 0.0118 0.30MM
Helix Angle 30°
End Of Tool Shape Corner Radius
Neck Length 1.9685 50.00MM
Length Type Long / With Neck
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
Mold Yes
Automotive Yes
