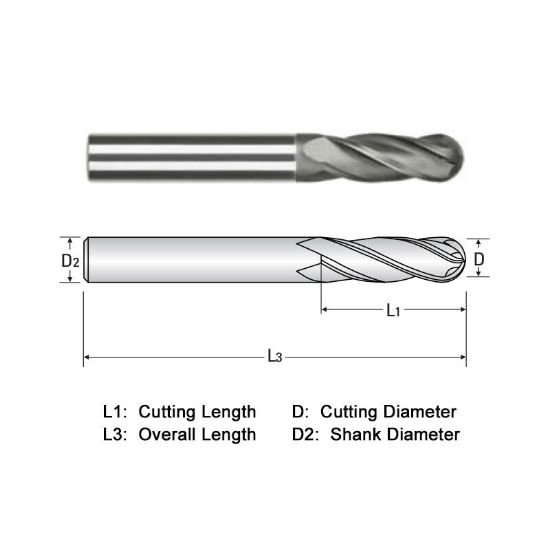

Picture of Widin WGB504A0.032-3SP Dia 0.032 SH 0.1250 LOC 0.2500 OAL 3.00 End Mill Standard Helix Carbide Diamond Single End Ball NoseBall Z-GRA-MATE

Widin WGB504A0.032-3SP Dia 0.032 SH 0.1250 LOC 0.2500 OAL 3.00 End Mill Standard Helix Carbide Diamond Single End Ball NoseBall Z-GRA-MATE

Part Number: WIDWGB504A0.032-3SP
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$109.84
SKU: 1219568

Description

WIDIN End Mill Carbide Diamond Ball Nose 4 Flute Single End Z-GRA-MATE
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type LONG
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Flutes/Inserts 4
Tool Dia 0.0320 0.81MM - #67
Length Of Cut 0.2500 6.35MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Graphite
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating Diamond
