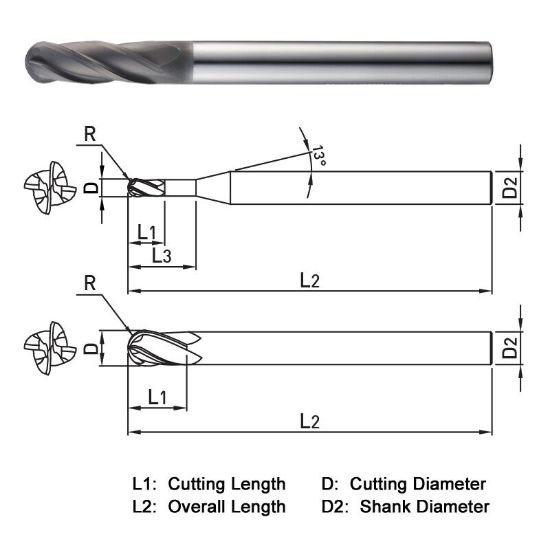

Picture of Widin WGB50401030 Dia 1mm SH 0.1575 LOC 0.1181 OAL3.1496 End Mill Standard Flute Standard Helix Carbide Diamond Single End Ball NoseBall Z-GRA-MATE

Widin WGB50401030 Dia 1mm SH 0.1575 LOC 0.1181 OAL3.1496 End Mill Standard Flute Standard Helix Carbide Diamond Single End Ball NoseBall Z-GRA-MATE

Part Number: WIDWGB50401030

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1219184
Vendor: Sussex Tool and Supply
$64.40
WIDIN Standard Helix End Mill Carbide Diamond Ball Nose Ball Standard Flute Flutes 4 Single End Z-GRA-MATE Carbide By applying diamond coatings to your metal parts you can increase lifetime and minimize maintenance related downtime due to the replacement of high wear parts. In addition, any process parts enhanced by a wear resistant coating like Composite Diamond Coating® will produce more consistent product over an extended period of time. Most metal finishers agree that the presence of this unique coating may also allow new materials with other performance or cost advantages to be utilized.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite
Coating Diamond
Mach Side Connection Size 0.1575 4.00MM
Overall Length 3.1496 80.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1574 4.00MM
Flutes/Inserts 4
Tool Dia 0.0393 1.00MM
Length Type Long / With Neck
Performance Rating High Performance
Length Of Cut 0.1181 3.00MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
Neck Length 1.1811 30.00MM
