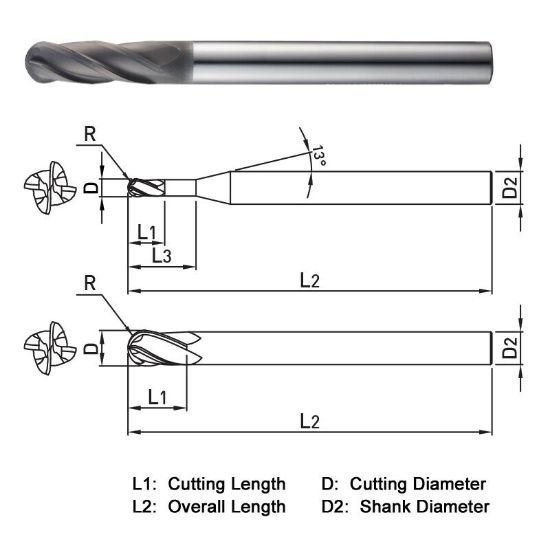

Picture of Widin WGB504010 Dia 1mm SH 0.1575 LOC 0.1181 OAL 2.3622 End Mill Standard Helix Carbide Diamond Single End Ball NoseBall Z-GRA-MATE

Widin WGB504010 Dia 1mm SH 0.1575 LOC 0.1181 OAL 2.3622 End Mill Standard Helix Carbide Diamond Single End Ball NoseBall Z-GRA-MATE

Part Number: WIDWGB504010
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$56.86
SKU: 1219179

Description

WIDIN End Mill Carbide Diamond Ball Nose 4 Flute Single End Z-GRA-MATE
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type LONG
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.3622 60.00MM
Shank/Pilot Dia 0.1574 4.00MM
Flutes/Inserts 4
Tool Dia 0.0393 1.00MM
Length Of Cut 0.1181 3.00MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Graphite
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating Diamond
