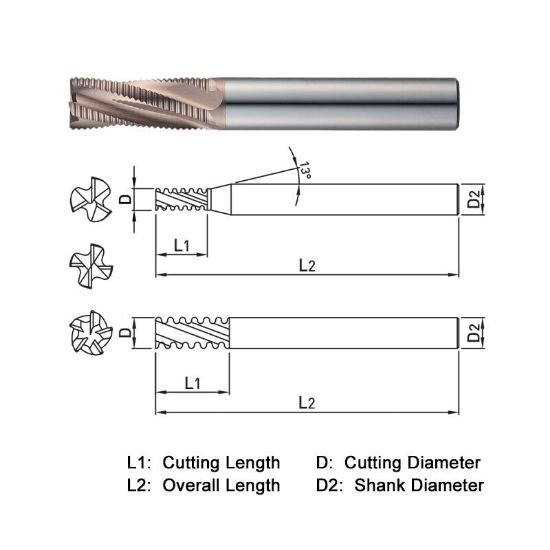

Picture of Widin WF614100 Dia 10mm SH 0.3937 LOC 0.9843 OAL2.9528 End Mill Carbide AlTiN Single End Square Sharp WINNER

Widin WF614100 Dia 10mm SH 0.3937 LOC 0.9843 OAL2.9528 End Mill Carbide AlTiN Single End Square Sharp WINNER

Part Number: WIDWF614100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1223282
Vendor: Sussex Tool and Supply
$63.78
WIDIN End Mill Carbide AlTiN Square Sharp Flutes 4 Single End WINNER Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.3937 10.00MM
Overall Length 2.9528 75.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 4
Tool Dia 0.3937 10.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.9843 25.00MM
End Of Tool Shape Square
Cutter Style Carbide Rougher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
