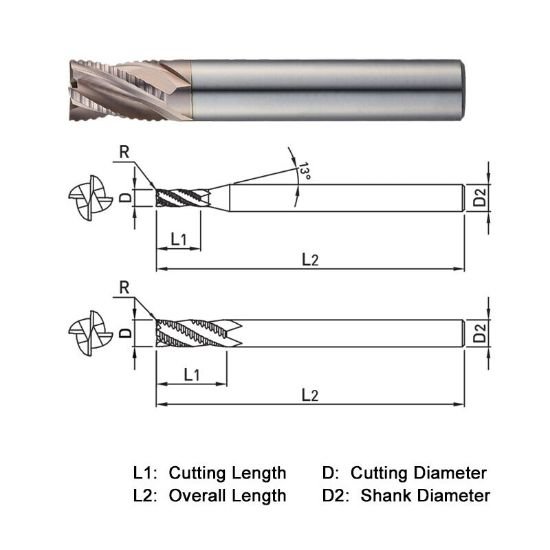

Picture of Widin WF604100 Dia 10mm SH 0.3937 LOC 0.5906 OAL2.5591 End Mill Carbide AlTiN Single End Corner Radius0.0118 0.30mm WINNER

Widin WF604100 Dia 10mm SH 0.3937 LOC 0.5906 OAL2.5591 End Mill Carbide AlTiN Single End Corner Radius0.0118 0.30mm WINNER

Part Number: WIDWF604100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1223258
Vendor: Sussex Tool and Supply
$64.46
WIDIN End Mill Carbide AlTiN Corner Radius 0.0118 0.30MM Flutes 4 Single End WINNER Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.3937 10.00MM
Overall Length 2.5591 65.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 4
Tool Dia 0.3937 10.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.5906 15.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Rougher
Single/Double End Single End
Corner Radius 0.0118 0.30MM
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
