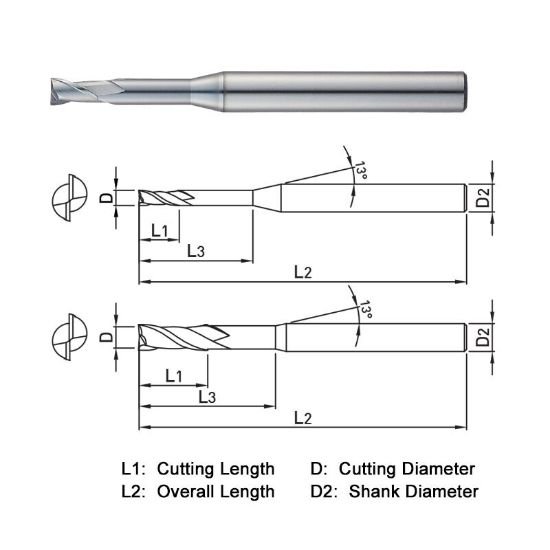

Picture of Widin WE71212050P Dia 12mm SH 0.4724 LOC 0.7874 OAL4.3307 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Square Sharp WINNER 7 Plus

Widin WE71212050P Dia 12mm SH 0.4724 LOC 0.7874 OAL4.3307 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Square Sharp WINNER 7 Plus

Part Number: WIDWE71212050P 0.472 x 0.472 x 0.787 x 4.331

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1230020
Vendor: Sussex Tool and Supply
$71.42
WIDIN Variable Helix End Mill Carbide AlTiN Square Sharp Standard Flute Flutes 2 Single End WINNER 7 PLUS Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Grey Iron, <60HRC Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.4724 12.00MM
Overall Length 4.3307 110.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4724 12.00MM
Length Type Long / With Neck
Performance Rating High Performance
Length Of Cut 0.7874 20.00MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle Variable
Center Cutting Center Cutting
Neck Length 1.9685 50.00MM
