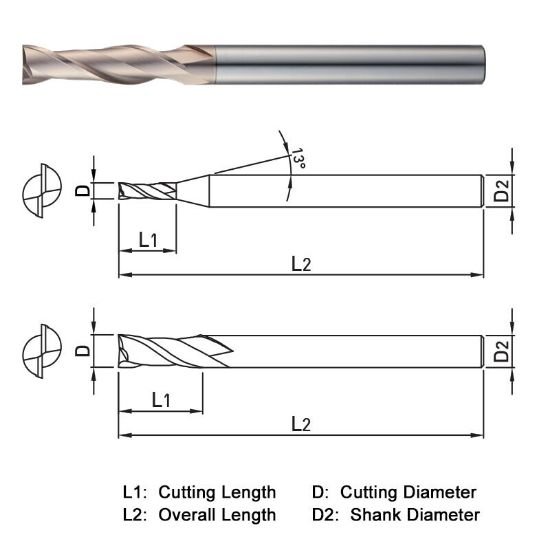

Picture of Widin WE52212065 Dia 12mm SH 0.4724 LOC 2.5591 OAL5.9055 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Square Sharp WINNER

Widin WE52212065 Dia 12mm SH 0.4724 LOC 2.5591 OAL5.9055 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Square Sharp WINNER

Part Number: WIDWE52212065
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1222950
Vendor: Sussex Tool and Supply
$100.57

Description

WIDIN Standard Helix End Mill Carbide AlTiN Square Sharp Standard Flute Flutes 2 Single End WINNER Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type LONG
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 5.9055 150.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4724 12.00MM
Length Of Cut 2.5591 65.00MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
