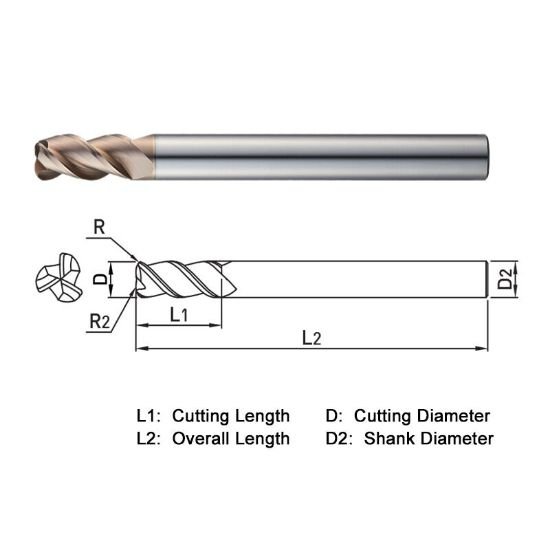

Picture of Widin WDR50320005 Dia 20mm SH 0.7874 LOC 1.5748 OAL5.9055 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0197 0.50mm WINNER

Widin WDR50320005 Dia 20mm SH 0.7874 LOC 1.5748 OAL5.9055 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0197 0.50mm WINNER

Part Number: WIDWDR50320005

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1222321
Vendor: Sussex Tool and Supply
$368.85
WIDIN Standard Helix End Mill Carbide AlTiN Corner Radius 0.0197 0.50MM Standard Flute Flutes 3 Single End WINNER Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.7874 20.00MM
Overall Length 5.9055 150.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 3
Tool Dia 0.7874 20.00MM
Length Type LONG
Performance Rating High Performance
Length Of Cut 1.5748 40.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0197 0.50MM
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
