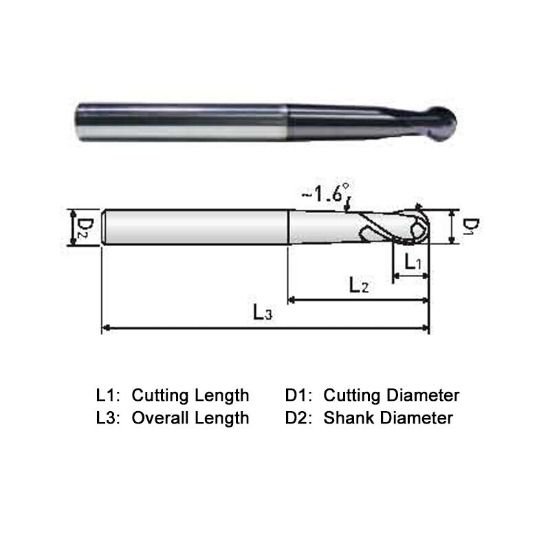

Picture of Widin WB7121506 Dia 1.50mm SH 0.1575 LOC 0.0591 OAL 1.771 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-ClassIC

Widin WB7121506 Dia 1.50mm SH 0.1575 LOC 0.0591 OAL 1.771 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-ClassIC

Part Number: WIDWB7121506
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$25.42
SKU: 1222226

Description

WIDIN End Mill Carbide AlTiN Ball Nose 2 Flute Single End Z-CLASSIC
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Long / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 1.7717 45.00MM
Shank/Pilot Dia 0.1574 4.00MM
Flutes/Inserts 2
Tool Dia 0.0591 1.50MM
Length Of Cut 0.0590 1.50MM
Neck Length 0.2362 6.00MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
