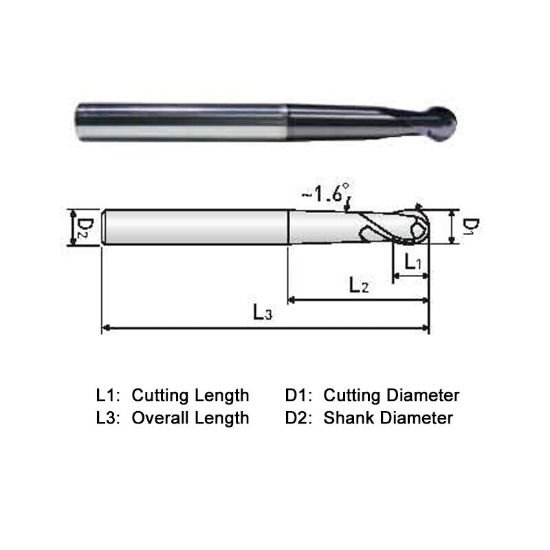

Picture of Widin WB7120505 Dia 0.50mm SH 0.1575 LOC 0.0197 OAL 1.771 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-ClassIC

Widin WB7120505 Dia 0.50mm SH 0.1575 LOC 0.0197 OAL 1.771 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-ClassIC

Part Number: WIDWB7120505
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$26.76
SKU: 1222173

Description

WIDIN End Mill Carbide AlTiN Ball Nose 2 Flute Single End Z-CLASSIC
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Long / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 1.7717 45.00MM
Shank/Pilot Dia 0.1574 4.00MM
Flutes/Inserts 2
Tool Dia 0.0197 0.50MM
Length Of Cut 0.0197 0.50MM
Neck Length 0.1969 5.00MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
