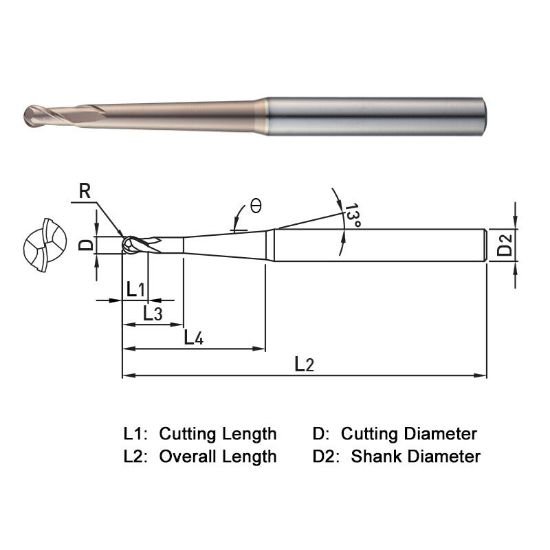

Picture of Widin WB5421001070 Dia 10mm SH 0.4724 LOC 0.7087 OAL 5.1181 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall WINNER

Widin WB5421001070 Dia 10mm SH 0.4724 LOC 0.7087 OAL 5.1181 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall WINNER

Part Number: WIDWB5421001070
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$123.23
SKU: 1222143

Description

WIDIN End Mill Carbide AlTiN Ball Nose 2 Flute Single End WINNER
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Long / With Taper Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 5.1181 130.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.3937 10.00MM
Length Of Cut 0.7087 18.00MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
