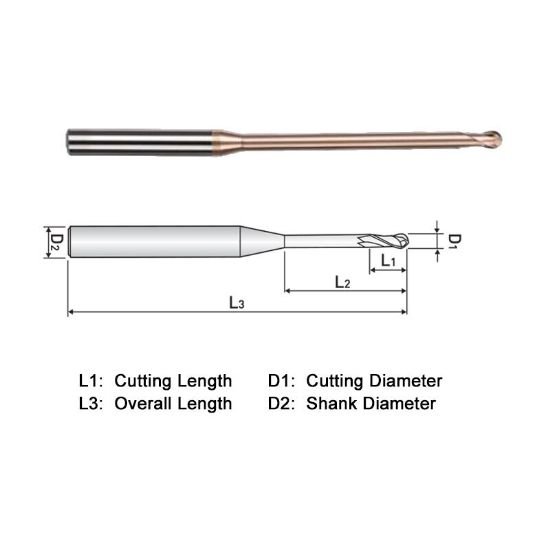

Picture of Widin WB51201503S6L Dia 1.50mm SH 0.2362 LOC 0.0591 OAL 2.755 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall WINNER

Widin WB51201503S6L Dia 1.50mm SH 0.2362 LOC 0.0591 OAL 2.755 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall WINNER

Part Number: WIDWB51201503S6L
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$32.13
SKU: 1228736

Description

WIDIN End Mill Carbide AlTiN Ball Nose 2 Flute Single End WINNER
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.7560 70.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.0591 1.50MM
Length Of Cut 0.0590 1.50MM
Neck Length 0.1181 3.00MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
