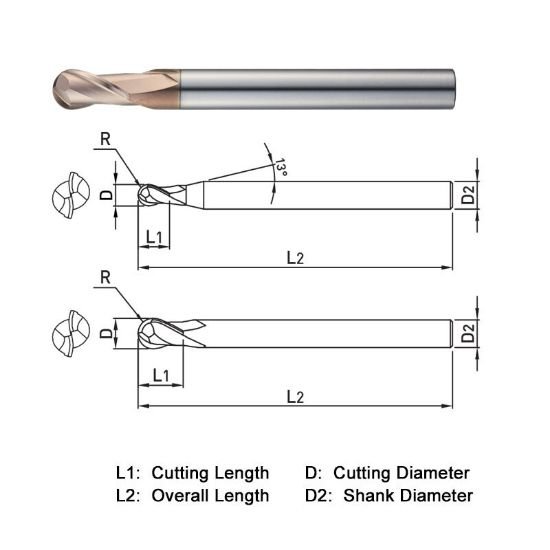

Picture of Widin WB502012S4 Dia 1.20mm SH 0.1575 LOC 0.1181 OAL1.968 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall WINNER

Widin WB502012S4 Dia 1.20mm SH 0.1575 LOC 0.1181 OAL1.968 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall WINNER

Part Number: WIDWB502012S4
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1221335
Vendor: Sussex Tool and Supply
$24.84

Description

WIDIN Standard Helix End Mill Carbide AlTiN Ball Nose Ball Standard Flute Flutes 2 Single End WINNER Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 1.9685 50.00MM
Shank/Pilot Dia 0.1574 4.00MM
Flutes/Inserts 2
Tool Dia 0.0472 1.20MM
Length Of Cut 0.1181 3.00MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
