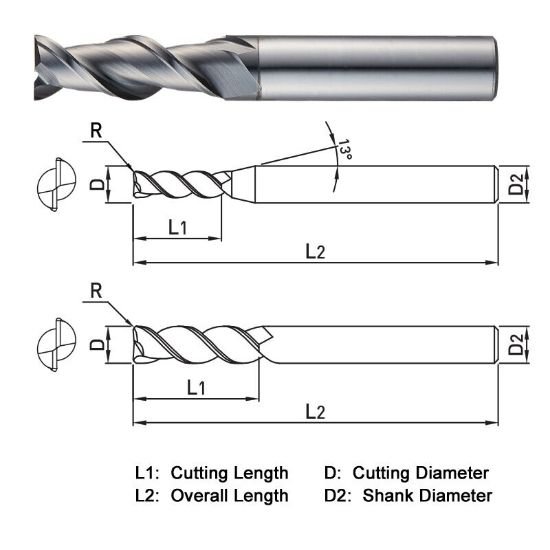

Picture of Widin WAR502110 Dia 11mm SH 0.4724 LOC 1.1811 OAL3.1496 End Mill Standard Flute High Helix Carbide DLC Single End Corner Radius0.0079 0.20mm ALU-WAVE

Widin WAR502110 Dia 11mm SH 0.4724 LOC 1.1811 OAL3.1496 End Mill Standard Flute High Helix Carbide DLC Single End Corner Radius0.0079 0.20mm ALU-WAVE

Part Number: WIDWAR502110

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1218305
Vendor: Sussex Tool and Supply
$107.46
WIDIN High Helix End Mill Carbide DLC Corner Radius 0.0079 0.20MM Standard Flute Flutes 2 Single End ALU-WAVE Carbide DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Coating DLC
Mach Side Connection Size 0.4724 12.00MM
Overall Length 3.1496 80.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4331 11.00MM
Length Type Stub
Performance Rating High Performance
Length Of Cut 1.1811 30.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0079 0.20MM
Inch/Metric Metric
Helix Angle 45
Center Cutting Center Cutting
