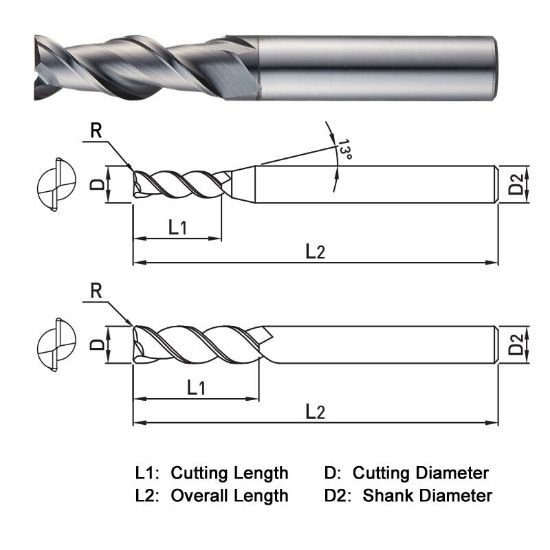

Picture of Widin WAR502041 Dia 4mm SH 0.2362 LOC 0.7874 OAL 2.3622 End Mill High Helix Carbide DLC Single End Corner Radius0.0039 0.10mm ALU-WAVE

Widin WAR502041 Dia 4mm SH 0.2362 LOC 0.7874 OAL 2.3622 End Mill High Helix Carbide DLC Single End Corner Radius0.0039 0.10mm ALU-WAVE

Part Number: WIDWAR502041
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$43.16
SKU: 1218295

Description

WIDIN High Helix End Mill Carbide DLC Corner Radius 0.0039 0.10MM 2 Flute Single End ALU-WAVE
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Stub
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.3622 60.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.1575 4.00MM
Length Of Cut 0.7874 20.00MM
Geometry & Angles
Corner Radius 0.0039 0.10MM
Helix Angle 45
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating DLC
