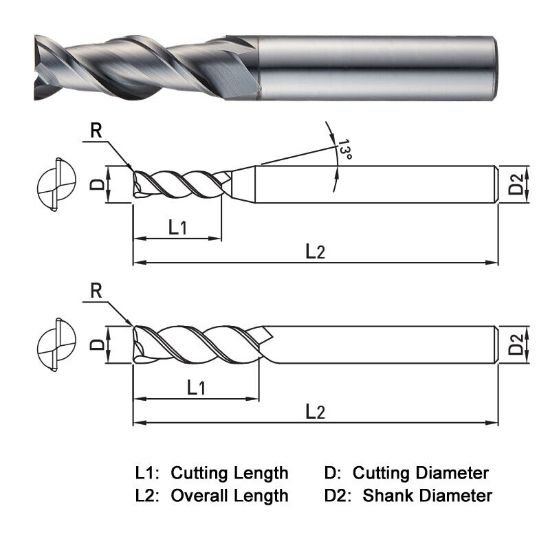

Picture of Widin WAR502031 Dia 3mm SH 0.2362 LOC 0.7874 OAL2.3622 End Mill Standard Flute High Helix Carbide DLC Single End Corner Radius0.0039 0.10mm ALU-WAVE

Widin WAR502031 Dia 3mm SH 0.2362 LOC 0.7874 OAL2.3622 End Mill Standard Flute High Helix Carbide DLC Single End Corner Radius0.0039 0.10mm ALU-WAVE

Part Number: WIDWAR502031

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1218293
Vendor: Sussex Tool and Supply
$53.64
WIDIN High Helix End Mill Carbide DLC Corner Radius 0.0039 0.10MM Standard Flute Flutes 2 Single End ALU-WAVE Carbide DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Coating DLC
Mach Side Connection Size 0.2362 6.00MM
Overall Length 2.3622 60.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.1181 3.00MM
Length Type Stub
Performance Rating High Performance
Length Of Cut 0.7874 20.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0039 0.10MM
Inch/Metric Metric
Helix Angle 45
Center Cutting Center Cutting
