WIDIN WAR313A040060 DIA 5/8 SH 0.6250 LOC 1.6250 OAL 3.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0600 1.52MM ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAR313A040060
Delivery date: 3-5 days
$117.40

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Slot Milling, Copy Milling, Face Milling, Side Milling
Made In USA No
Package Size 1
Shipping State Illinois
Performance Rating High Performance

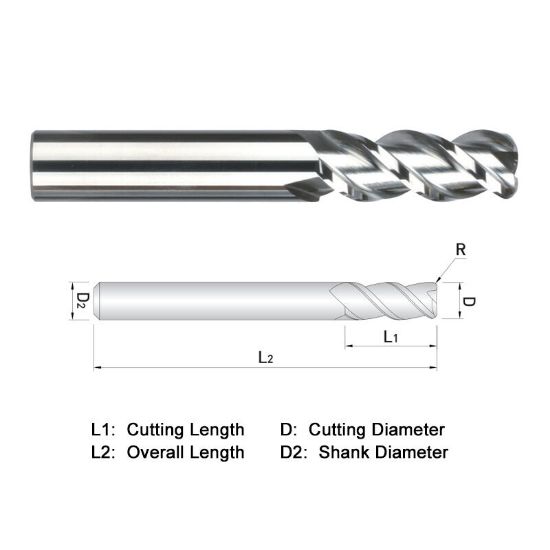

Dimensional Specifications
Machine Side Connection Size 0.6250 15.88MM
End Of Tool Shape Corner Radius
Length Type Standard
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Length Of Cut 1.6250 41.28MM
Single/Double End Single End
Corner Radius 0.0600 1.52MM
Helix Angle 45°
Cut Rating Aluminum, Graphite, Plastic
Overall Len 3.5000 88.90MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cutter Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
