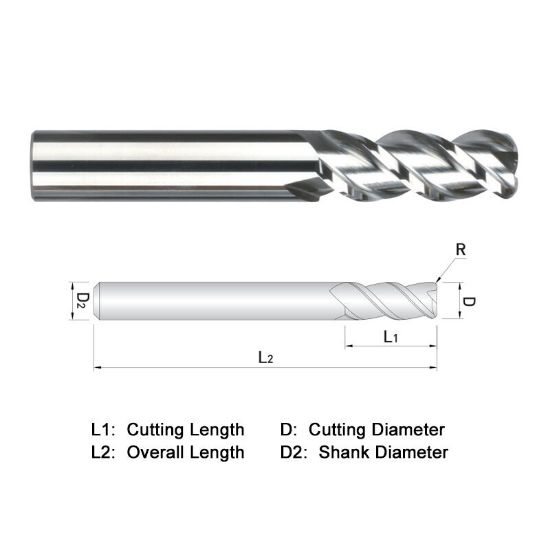

WIDIN WAR313A028020 DIA 7/16 SH 0.4375 LOC 1.00 OAL 2.7500 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0200 0.51MM ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAR313A028020
Delivery date: 3-5 days
$53.48

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Face Milling, Profile Milling, Slot Milling, Side Milling
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Helix Angle 45°
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.4375 11.11MM
Shank/Pilot Dia 0.4375 11.11MM - 7/16
Inch/Metric Inch
Corner Radius 0.0200 0.51MM
Length Of Cut 1.0000 25.40MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Length Type Standard
Cutter Dia 0.4375 11.11MM - 7/16
Overall Len 2.7500 69.85MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
