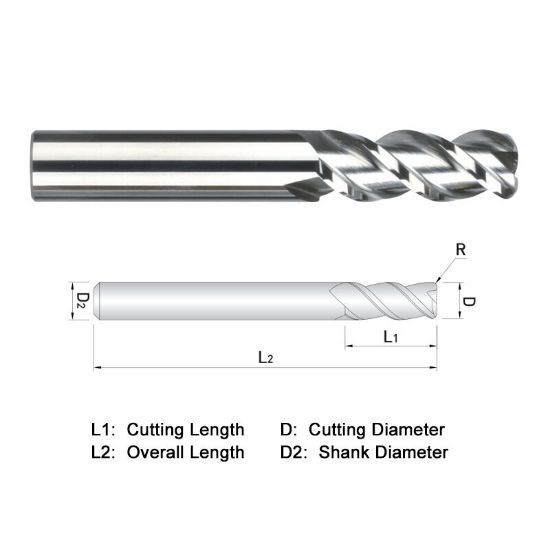

WIDIN WAR313A024020 DIA 3/8 SH 0.3750 LOC 1.00 OAL 2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0200 0.51MM ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAR313A024020
Delivery date: 3-5 days
$32.41

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Side Milling, Face Milling, Profile Milling, Slot Milling, Copy Milling
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Cutter Dia 0.3750 9.53MM - 3/8
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Corner Radius 0.0200 0.51MM
Machine Side Connection Type Cylindrical
Length Of Cut 1.0000 25.40MM
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Helix Angle 45°
Overall Len 2.5000 63.50MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
