WIDIN WAR313A012020 DIA 3/16 SH 0.1875 LOC 0.5625 OAL 2.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0200 0.51MM ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAR313A012020
Delivery date: 3-5 days
$21.35

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Side Milling, Face Milling, Profile Milling, Slot Milling
Made In USA No
Performance Rating High Performance
Package Size 1
Shipping State Illinois

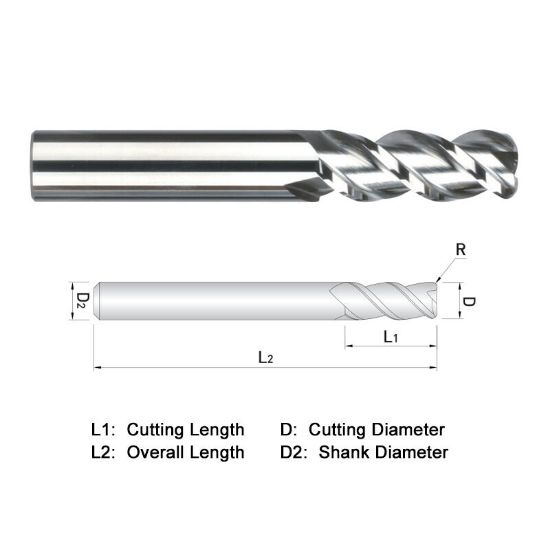

Dimensional Specifications
Flutes/Inserts 3
Corner Radius 0.0200 0.51MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.1875 4.76MM - 3/16
Length Of Cut 0.5625 14.29MM
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
End Of Tool Shape Corner Radius
Machine Side Connection Size 0.1875 4.76MM
Overall Len 2.0000 50.80MM
Helix Angle 45°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Mold Yes
Automotive Yes
Job Shop Yes
