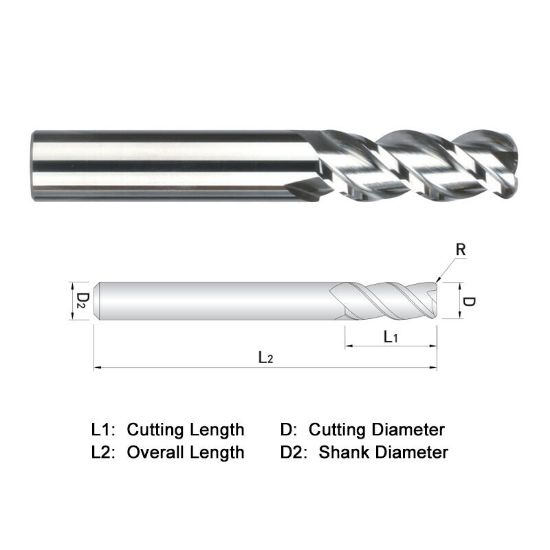

WIDIN WAR313A012010 DIA 3/16 SH 0.1875 LOC 0.5625 OAL 2.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0100 0.25MM ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAR313A012010
Delivery date: 3-5 days
$21.35

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Profile Milling, Slot Milling, Copy Milling, Side Milling
Package Size 1
Shipping State Illinois
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
End Of Tool Shape Corner Radius
Single/Double End Single End
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Machine Side Connection Size 0.1875 4.76MM
Helix Angle 45°
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.1875 4.76MM - 3/16
Length Of Cut 0.5625 14.29MM
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Overall Len 2.0000 50.80MM
Length Type Standard
Corner Radius 0.0100 0.25MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
