WIDIN WAR312A040030 DIA 5/8 SH 0.6250 LOC 1.6250 OAL 3.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0300 0.76MM ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAR312A040030
Delivery date: 3-5 days
$117.40

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Copy Milling, Face Milling, Profile Milling, Slot Milling
Package Size 1
Performance Rating High Performance
Made In USA No
Shipping State Illinois

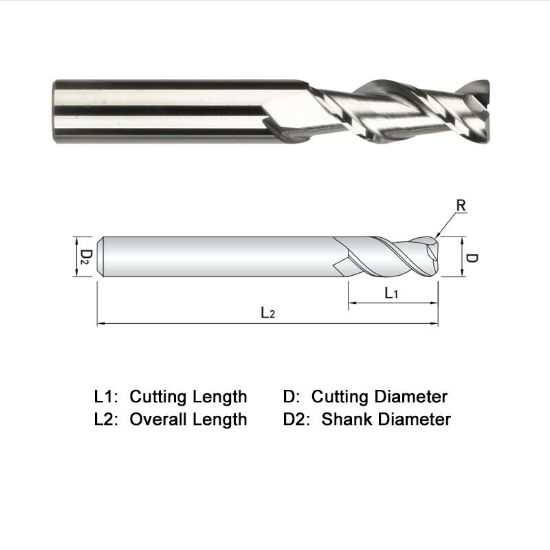

Dimensional Specifications
Cutter Dia 0.6250 15.88MM - 5/8
Corner Radius 0.0300 0.76MM
Length Of Cut 1.6250 41.28MM
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Overall Len 3.5000 88.90MM
Flutes/Inserts 2
Length Type Standard
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutter Style Carbide Bull Nose Finisher
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Helix Angle 45°
Machine Side Connection Size 0.6250 15.88MM
End Of Tool Shape Corner Radius
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
