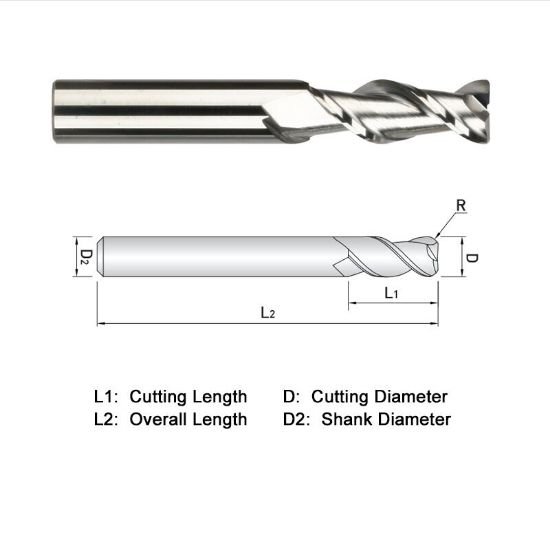

Picture of Widin WAR312A028020 Dia 7/16 SH 0.4375 LOC 1.00 OAL2.7500 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0200 0.51mm ALU-WAVE

Widin WAR312A028020 Dia 7/16 SH 0.4375 LOC 1.00 OAL2.7500 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0200 0.51mm ALU-WAVE

Part Number: WIDWAR312A028020

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1218225
Vendor: Sussex Tool and Supply
$68.19
WIDIN High Helix End Mill Carbide Uncoated Corner Radius 0.0200 0.51MM Standard Flute Flutes 2 Single End ALU-WAVE Carbide
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.4375 11.11MM
Overall Length 2.7500 69.85MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4375 11.11MM - 7/16
Flutes/Inserts 2
Tool Dia 0.4375 11.11MM - 7/16
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.0000 25.40MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0200 0.51MM
Inch/Metric Inch
Helix Angle 45
Center Cutting Center Cutting
