WIDIN WAR303A048090 DIA 3/4 SH 0.7500 LOC 1.00 OAL 4.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0900 2.29MM ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAR303A048090
Delivery date: 3-5 days
$112.16

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Profile Milling, Copy Milling, Slot Milling
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Illinois

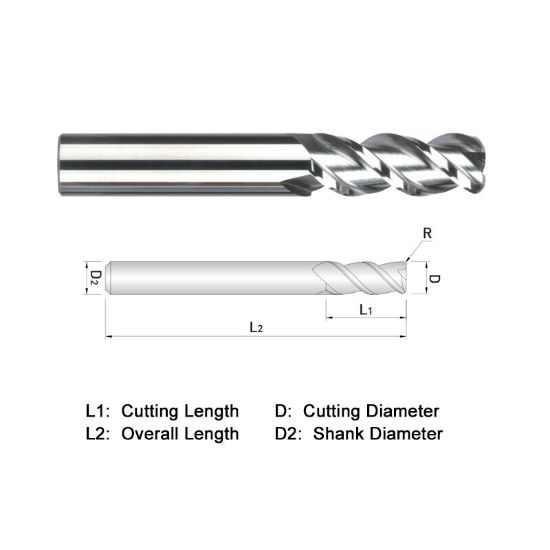

Dimensional Specifications
Overall Len 4.0000 101.60MM
Length Of Cut 1.0000 25.40MM
Corner Radius 0.0900 2.29MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Shank/Pilot Dia 0.7500 19.05MM - 3/4
End Of Tool Shape Corner Radius
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Helix Angle 45°
Length Type Stub
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Mold Yes
Automotive Yes
