WIDIN WAR303A040030 DIA 5/8 SH 0.6250 LOC 0.8750 OAL 3.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0300 0.76MM ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAR303A040030
Delivery date: 3-5 days
$94.36

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Side Milling, Copy Milling, Face Milling, Profile Milling
Made In USA No
Shipping State Illinois
Performance Rating High Performance
Package Size 1

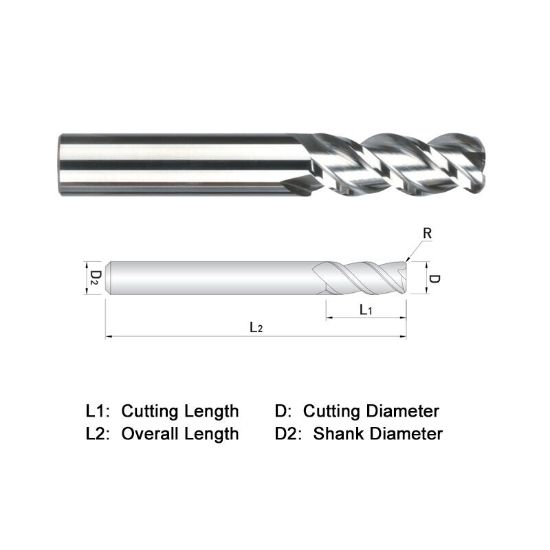

Dimensional Specifications
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Helix Angle 45°
Cutter Dia 0.6250 15.88MM - 5/8
End Of Tool Shape Corner Radius
Length Type Stub
Overall Len 3.5000 88.90MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Corner Radius 0.0300 0.76MM
Machine Side Connection Size 0.6250 15.88MM
Length Of Cut 0.8750 22.23MM
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
Mold Yes
Automotive Yes
