WIDIN WAR3031620 DIA 16MM SH 0.6299 LOC 1.5748 OAL 3.5433 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0787 2.00MM ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAR3031620
Delivery date: 3-5 days
$121.43

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Side Milling, Face Milling, Profile Milling, Copy Milling
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Illinois

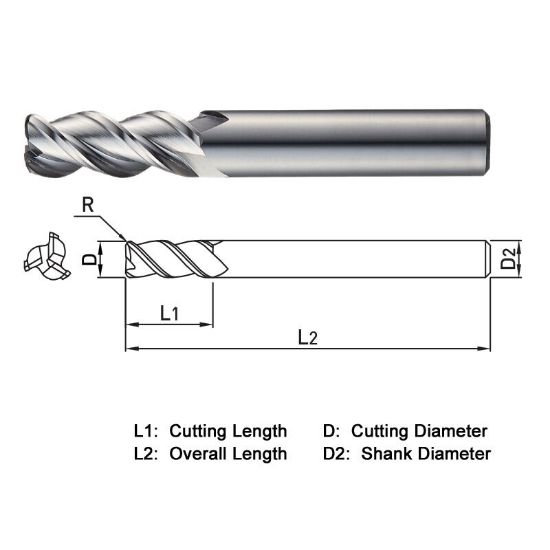

Dimensional Specifications
Inch/Metric Metric
Cutter Dia 0.6299 16.00MM
Helix Angle 45°
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Length Of Cut 1.5748 40.00MM
End Of Tool Shape Corner Radius
Length Type Stub
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Overall Len 3.5433 90.00MM
Single/Double End Single End
Corner Radius 0.0787 2.00MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
Mold Yes
Automotive Yes
