WIDIN WAR3031020 DIA 10MM SH 0.3937 LOC 0.9843 OAL 2.7559 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0787 2.00MM ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAR3031020
Delivery date: 3-5 days
$51.59

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Profile Milling, Slot Milling, Copy Milling
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Illinois

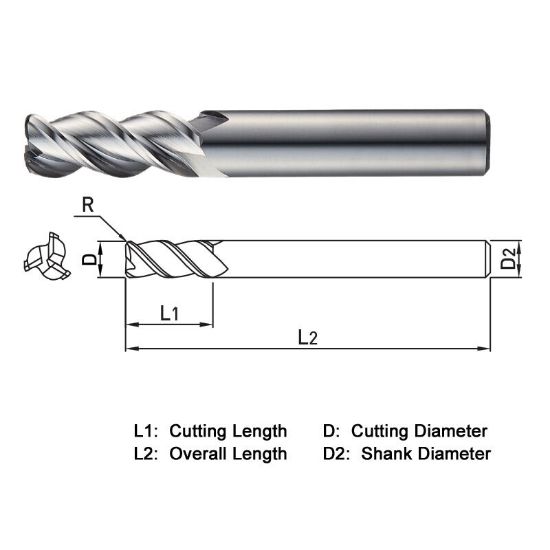

Dimensional Specifications
Shank/Pilot Dia 0.3937 10.00MM
Overall Len 2.7560 70.00MM
Length Of Cut 0.9843 25.00MM
Corner Radius 0.0787 2.00MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Helix Angle 45°
Inch/Metric Metric
End Of Tool Shape Corner Radius
Length Type Stub
Machine Side Connection Size 0.3937 10.00MM
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.3937 10.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Mold Yes
Automotive Yes
