WIDIN WAR3031005 DIA 10MM SH 0.3937 LOC 0.9843 OAL 2.7559 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0197 0.50MM ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAR3031005
Delivery date: 3-5 days
$51.59

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Slot Milling, Face Milling, Profile Milling, Side Milling
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Package Size 1

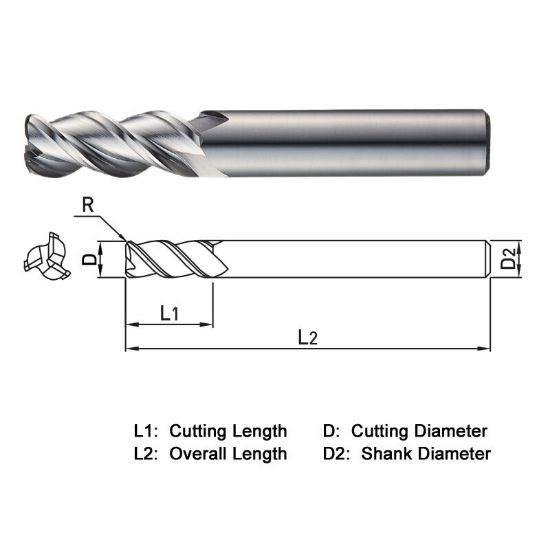

Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Type Stub
Corner Radius 0.0197 0.50MM
Machine Side Connection Size 0.3937 10.00MM
Helix Angle 45°
End Of Tool Shape Corner Radius
Single/Double End Single End
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Inch/Metric Metric
Cutter Dia 0.3937 10.00MM
Shank/Pilot Dia 0.3937 10.00MM
Overall Len 2.7560 70.00MM
Length Of Cut 0.9843 25.00MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
Mold Yes
Automotive Yes
