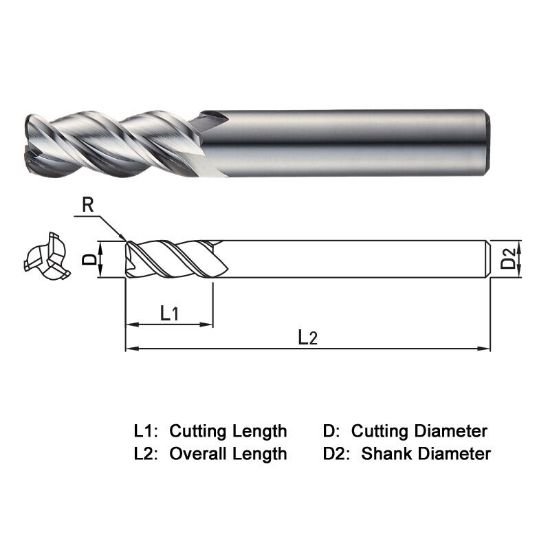

Picture of Widin WAR3030615 Dia 6mm SH 0.2362 LOC 0.5906 OAL1.9685 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0591 1.50mm ALU-WAVE

Widin WAR3030615 Dia 6mm SH 0.2362 LOC 0.5906 OAL1.9685 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0591 1.50mm ALU-WAVE

Part Number: WIDWAR3030615

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1218162
Vendor: Sussex Tool and Supply
$35.77
WIDIN High Helix End Mill Carbide Uncoated Corner Radius 0.0591 1.50MM Standard Flute Flutes 3 Single End ALU-WAVE Carbide
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.2362 6.00MM
Overall Length 1.9685 50.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 3
Tool Dia 0.2362 6.00MM
Length Type Stub
Performance Rating High Performance
Length Of Cut 0.5906 15.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0591 1.50MM
Inch/Metric Metric
Helix Angle 45
Center Cutting Center Cutting
