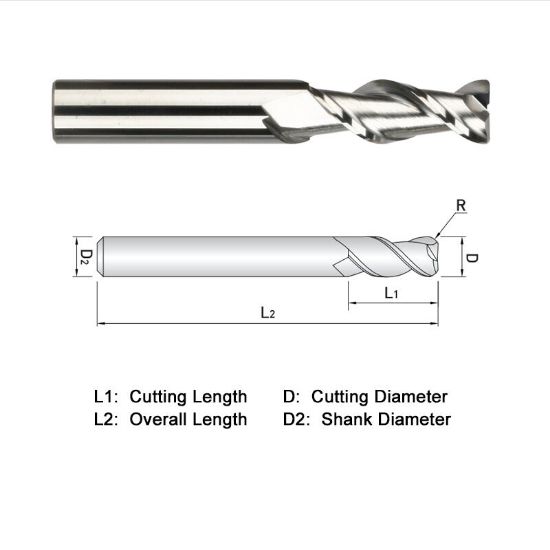

WIDIN WAR302A040030 DIA 5/8 SH 0.6250 LOC 0.8750 OAL 3.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0300 0.76MM ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAR302A040030
Delivery date: 3-5 days
$94.36

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Profile Milling, Slot Milling, Side Milling, Face Milling
Package Size 1
Shipping State Illinois
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Machine Side Connection Size 0.6250 15.88MM
End Of Tool Shape Corner Radius
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutter Style Carbide Bull Nose Finisher
Cutter Dia 0.6250 15.88MM - 5/8
Length Type Stub
Corner Radius 0.0300 0.76MM
Length Of Cut 0.8750 22.23MM
Single/Double End Single End
Helix Angle 45°
Flutes/Inserts 2
Cut Rating Aluminum, Graphite, Plastic
Overall Len 3.5000 88.90MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
