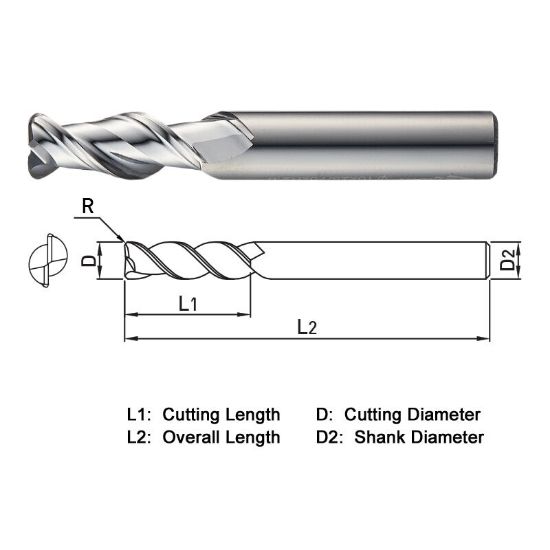

WIDIN WAR3020820 DIA 8MM SH 0.3150 LOC 0.7874 OAL 2.3622 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0787 2.00MM ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAR3020820
Delivery date: 3-5 days
$36.55

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Face Milling, Profile Milling, Slot Milling, Side Milling, Copy Milling
Performance Rating High Performance
Package Size 1
Dimensional Specifications
End Of Tool Shape Corner Radius
Single/Double End Single End
Cutter Style Carbide Bull Nose Finisher
Length Type Stub
Corner Radius 0.0787 2.00MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Size 0.3150 8.00MM
Length Of Cut 0.7874 20.00MM
Overall Len 2.3622 60.00MM
Helix Angle 45°
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3150 8.00MM
Cutter Dia 0.3150 8.00MM
Flutes/Inserts 2
Inch/Metric Metric
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
