WIDIN WAR3020805 DIA 8MM SH 0.3150 LOC 0.7874 OAL 2.3622 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0197 0.50MM ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAR3020805
Delivery date: 3-5 days
$36.55

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Copy Milling, Profile Milling, Slot Milling
Package Size 1
Shipping State Illinois
Performance Rating High Performance
Made In USA No

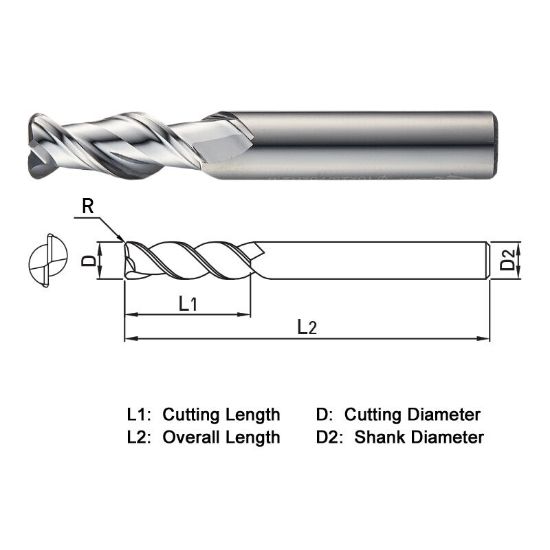

Dimensional Specifications
Cutter Dia 0.3150 8.00MM
Inch/Metric Metric
Single/Double End Single End
Helix Angle 45°
Length Type Stub
Corner Radius 0.0197 0.50MM
Overall Len 2.3622 60.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3150 8.00MM
End Of Tool Shape Corner Radius
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Size 0.3150 8.00MM
Length Of Cut 0.7874 20.00MM
Cutter Style Carbide Bull Nose Finisher
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
