WIDIN WAR3020620 DIA 6MM SH 0.2362 LOC 0.5906 OAL 1.9685 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0787 2.00MM ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAR3020620
Delivery date: 3-5 days
$26.64

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Package Size 1
Application Copy Milling, Face Milling, Profile Milling, Slot Milling, Side Milling
Performance Rating High Performance
Made In USA No

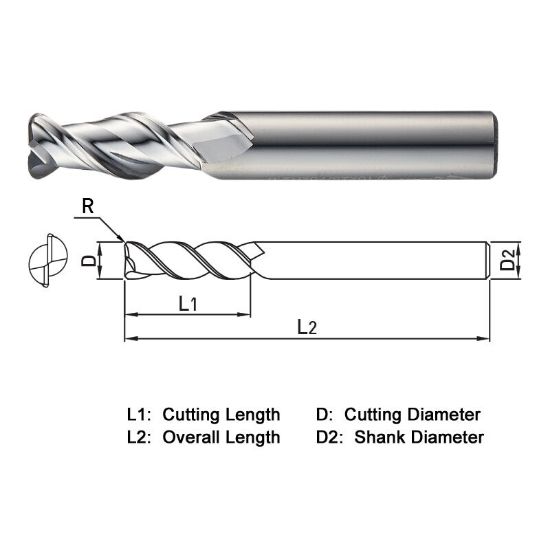

Dimensional Specifications
Machine Side Connection Size 0.2362 6.00MM
Helix Angle 45°
Flutes/Inserts 2
Inch/Metric Metric
Corner Radius 0.0787 2.00MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Cutter Dia 0.2362 6.00MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Overall Len 1.9685 50.00MM
Length Of Cut 0.5906 15.00MM
Cutter Style Carbide Bull Nose Finisher
Length Type Stub
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
