WIDIN WAR3020605 DIA 6MM SH 0.2362 LOC 0.5906 OAL 1.9685 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0197 0.50MM ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAR3020605
Delivery date: 3-5 days
$26.64

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Profile Milling, Slot Milling, Side Milling, Face Milling, Copy Milling
Performance Rating High Performance
Package Size 1
Shipping State Illinois

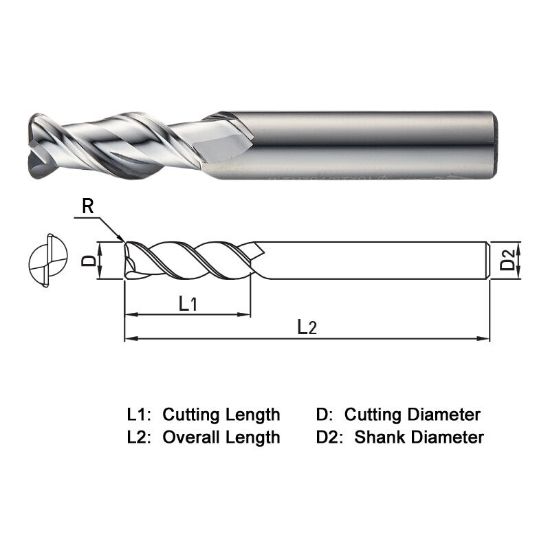

Dimensional Specifications
Flutes/Inserts 2
Corner Radius 0.0197 0.50MM
Length Of Cut 0.5906 15.00MM
Cutter Dia 0.2362 6.00MM
End Of Tool Shape Corner Radius
Length Type Stub
Cut Rating Aluminum, Graphite, Plastic
Cutter Style Carbide Bull Nose Finisher
Inch/Metric Metric
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Overall Len 1.9685 50.00MM
Machine Side Connection Size 0.2362 6.00MM
Helix Angle 45°
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Mold Yes
Automotive Yes
Job Shop Yes
